Android Fingerprint Scanner Industrial PDA With External Function Devices

Brand Name : SPEEDATA

Model Number : KT55

Certification : ISO9001/IP65/1.5M Drop Resistance

Place of Origin : China Mainland

MOQ : 1-5pcs

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 10000unit/month

Delivery Time : 5-8working days

Packaging Details : Speedata Conventional Packing-1pcs; USB Data Cable-1pcs; Charger-1pcs; Protection Cover-1pcs; Hand Strap-1pcs.

Item Name : 4G Android Mobile Phone PDA

OS : Android 5.1 Operation System

CPU : Octa-core 1.3Ghz Cortex-A53

Screen : Dual Screens: 5.5inch Amoled +0.9inch OLED

Battery : Rechargeable Li-ion battery 6000mAh

Camera : Dual Cameras -back and front

Specification : The Most Fashionable PDA with Thinnes 10mm

patent : Dual Screens Design

WWLAN : 4G LTE

Contact Now

Handheld Android Fingerprint Scanner Industrial PDA with external function devices

Not only for Business Smartphone Phone,but also for Industrial PDA with external extension interfaces.

Specifications of KT55 Android Mobile Phone PDA:

  • The Super thin smart mobile phone PDA--1CM
  • Android 5.1 OS
  • 4G LTE
  • Industrial PDA & Smartphone
  • Dual-Screen Display:
  • Super 5.5 inch AMOLED Screen and a 0.91inch OLED small Date Screen
  • One key Fingerprint Unlocking and Screen Awaking Function
  • A53 1.3Ghz Octa-Core processor
  • Dual cameras(The rear-13MP, the front-5MP)
  • Compatible with 4G LTE
  • Dual-band WiFi module
  • Support the wireless charging technology
  • Rechargebale Li-ion 6000mAh battery

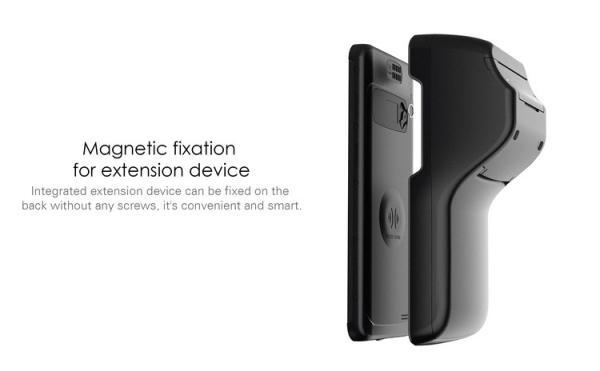

  • Support multiple functional modules extension, it's more convenient for both work and personal life.
  • Support OEM/ODM service, Assembled by Foxconn

Parameters of KT55 Android Mobile Phone PDA:

KT55 SPEC

Android OS
OS Android 5.1

CORE
Core CPU Octa-core 1.3GHz
ARM® Cortex-A53
WWLAN FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8
Flash ROM 16GB
RAM 2GB DDR3

General Configuration
Display Main Screen 5.5 inch OLED 1920*1080 FHD
Sub-screen 0.91 OLED
Touch screen Multi-point touch capacitive screen
Fingerprint YES
GPS

Support GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN).

Support Full AGPS
Bluetooth v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
WiFi 802.11 a/b/g/n
Protection class IP65
Drop resistance level 1.5m
Camera (OPTION) Rear camera 13MP Camera
Front camera 5MP Camera
Keypad Front /Side 5 side buttons
Interface Micro-USB connector USB2.0 OTG
SIM card slot 1 standard SIM slot
1 Micro SIM slot
TF card slot Yes
power jack Micro-USB
Audio Jack Yes
External Interface OPTION USB, RS232, SPI, GPIO
Battery Type rechargeable Li-ion battery 6000mAh
Standby Time 600hours
Calls Time Up to 6hours
Charging Time 5 hours (USB charging)
Physical Characteristics Dimension 170*79*13mm
Weight >250g with battery (according config)
Operating temperature -20°C to 50°C / -4°F to 122°F
Storage temperature -30°C to 70°C / -22°F to 158°F
Humidity (non-condensed) Operating 10% to 90% / Storage 5% to 95%
Electrostatic discharge ± 15 kV air discharge, ± 8 kV contact discharge
EMC regulation CE

OPTIONS
Appearance color option various color options
Wireless charging option include Wireless transmitting base.
Far Infrared Meter Reading option IEC62056-21(IEC1107) communication protocol
IRIS recognition option The recognition distance is less than 20cm
PSAM option ISO7816 (SIM card interface)
NFC option NFC(Compatible 13.56MHz ISO 14443A ISO15693)
Barcode scanner option Honeywell N6603 1D & 2D barcode scanner
Clip device
RFID reader option 1 LF RFID(134.2KHz, ISO11784/11785, FDX-B/HDX)
option 2 LF RFID(125KHz)
option 3 HF RFID(13.56MHz ISO 14443A/B ISO 15693)
option 4 R2000 UHF RFID 860-960MHz ISO18000-6C (EPC Gen2)
IC card reader(Optional) option ISO7816 ID-1
Printer option 2 inch direct thermal printer
MRZ option ICAO Document 9303 / E13B and OCRB fonts
Fingerprint reader option 1 UPEK TCS1 (meet the FBI’s FIPS-201)
option 2 UPEK TCS2SS
option 3 Customized according to customer needs.
Free Extension

Multiple extension interface, such as RS232, GPIO, USB, SPI.

You can freely design what you want.
